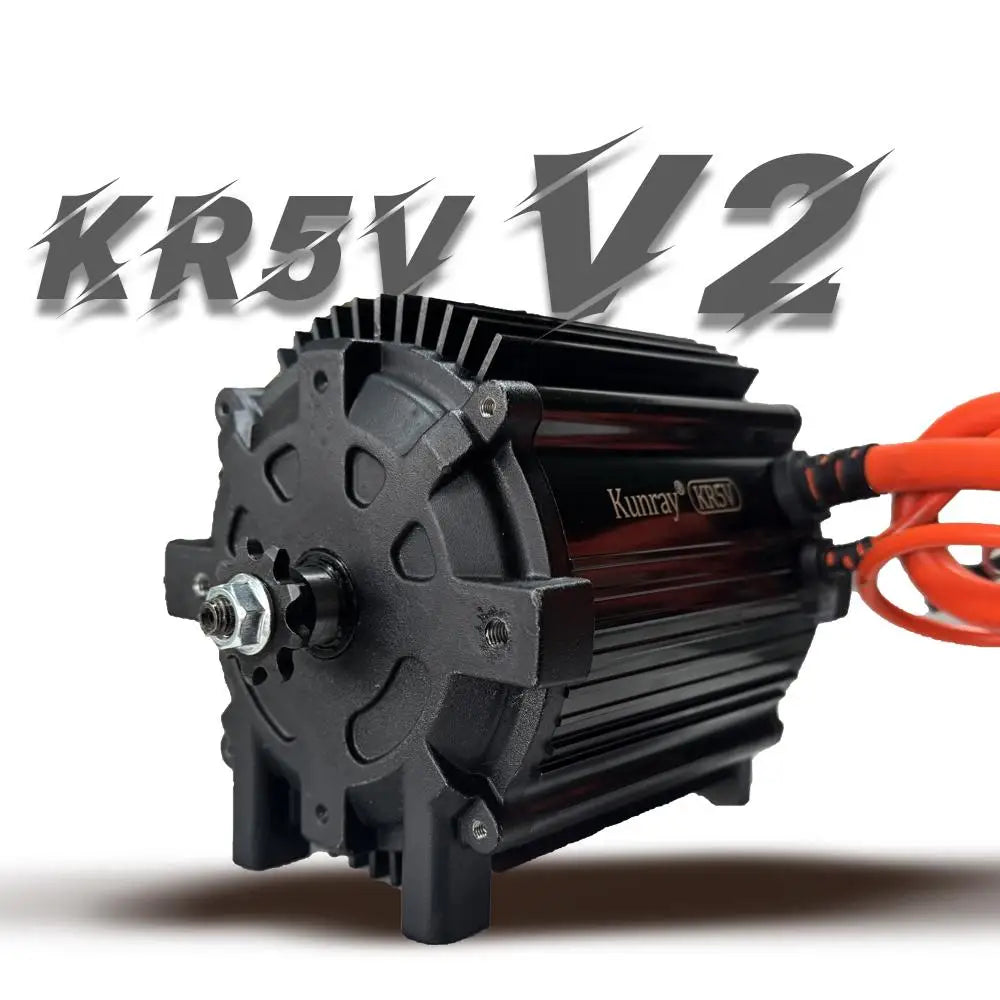

Kunray KR5V V2 72V 5000W Brushless Motor
Kunray KR5V V2 72V 5000W Brushless Motor
Regular price
$469.99 USD
Regular price
$390.00 USD
Sale price
$469.99 USD
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Kunray
Design: Brushless
High Torque N.M: 35N.M

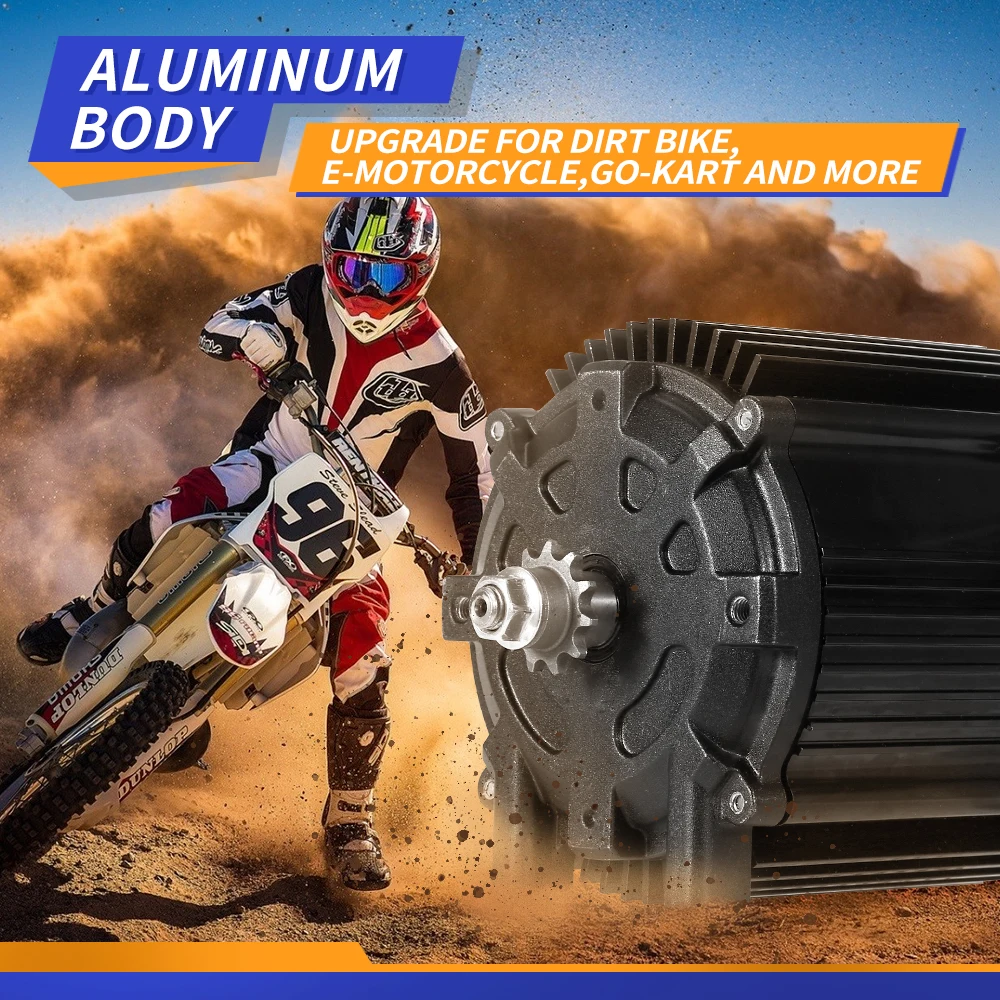

Material: Aluminum
Model Number: KR5V
Peak RPM: 8000RPM
Peak Current: 80-100A
Product Name: Brushless Motor for Electric Motorcycle
Rated Current: 60A
Rated RPM: 5000RPM
Style: Tricycle
Torque N.M: 8.5N.M
Voltage: 72v,72V 5000W
|
Rated power
|
72V 5000W
|
|
|
|
|||
|
Rated RPM
|
5000RPM
|
|
|
|
|||
|
Peak RPM
|
8000RPM
|
|
|
|
|||
|
Rated Current
|
60A
|
|
|
|
|||
|
Peak Current
|
80A-100A
|
|
|
|
|||
|
Torque N.m
|
8.5N.m
|
|
|
|
|||
|
Peak w.m
|
35N.m
|
|
|
|
|||
|
Poles
|
5pair /10pcs
|
|
|
|
|||
|
Sensor
|

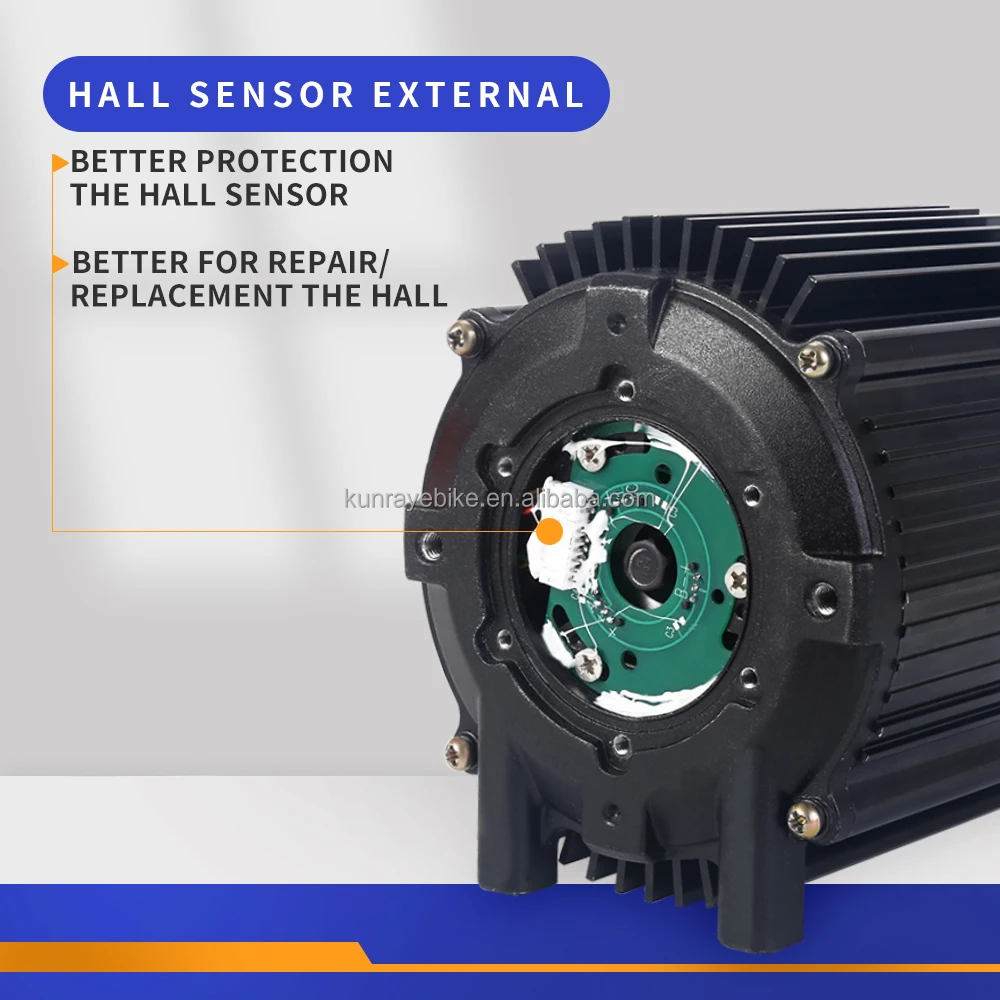

Hall sensor
|
|
|
|
|||
|
TMP Sensor
|
KTY84-130
|
|
|
|
|||
|
Class
|
F(155℃)
|
|
|
|
|||
|
IP
|
IP54
|
|
|
|
|||
|
Cooling
|
Air cooling
|
|
|
|
|||
|
Phase wire
|
8mm²
|
|
|
|
|||

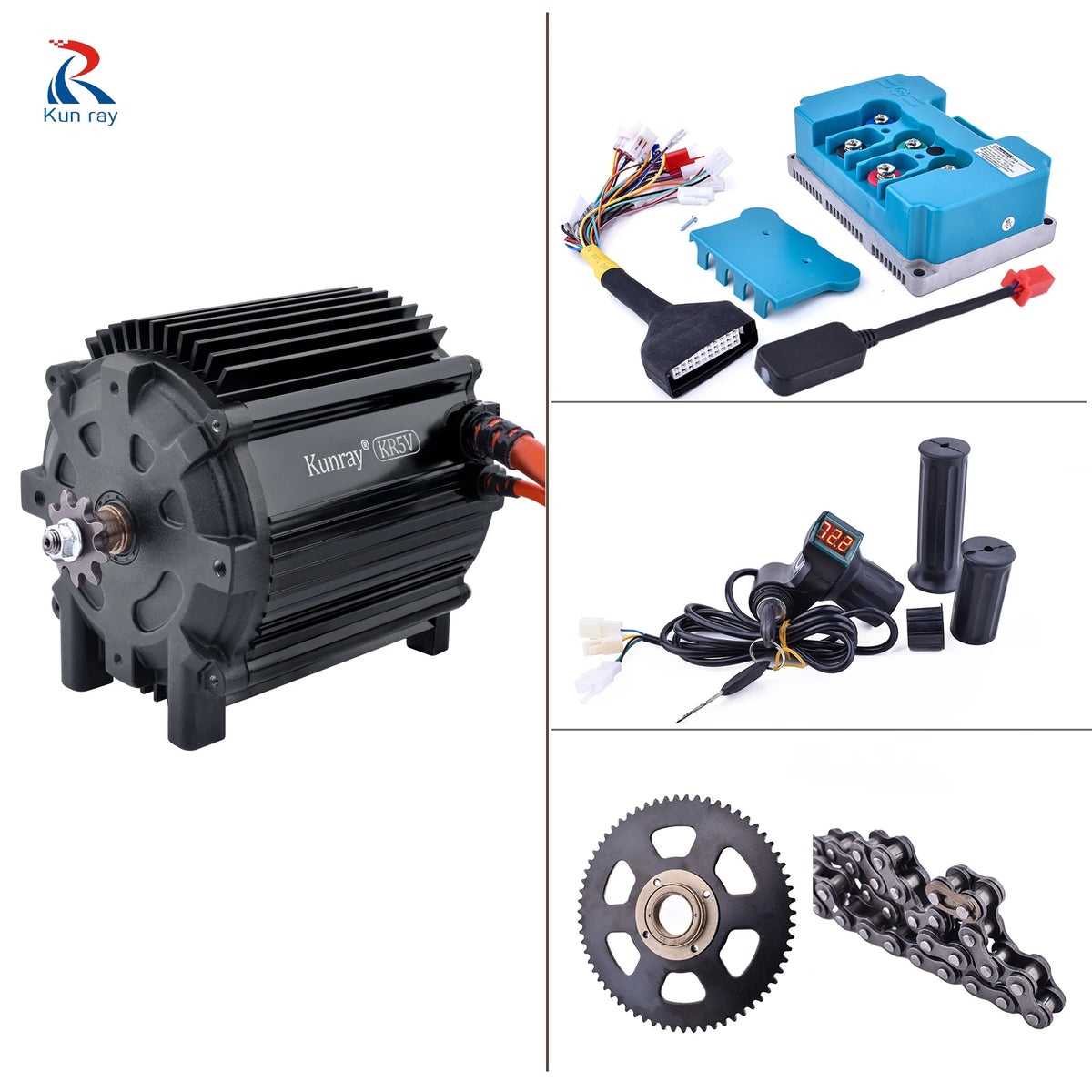

Packing List:
1.KR5V Motor

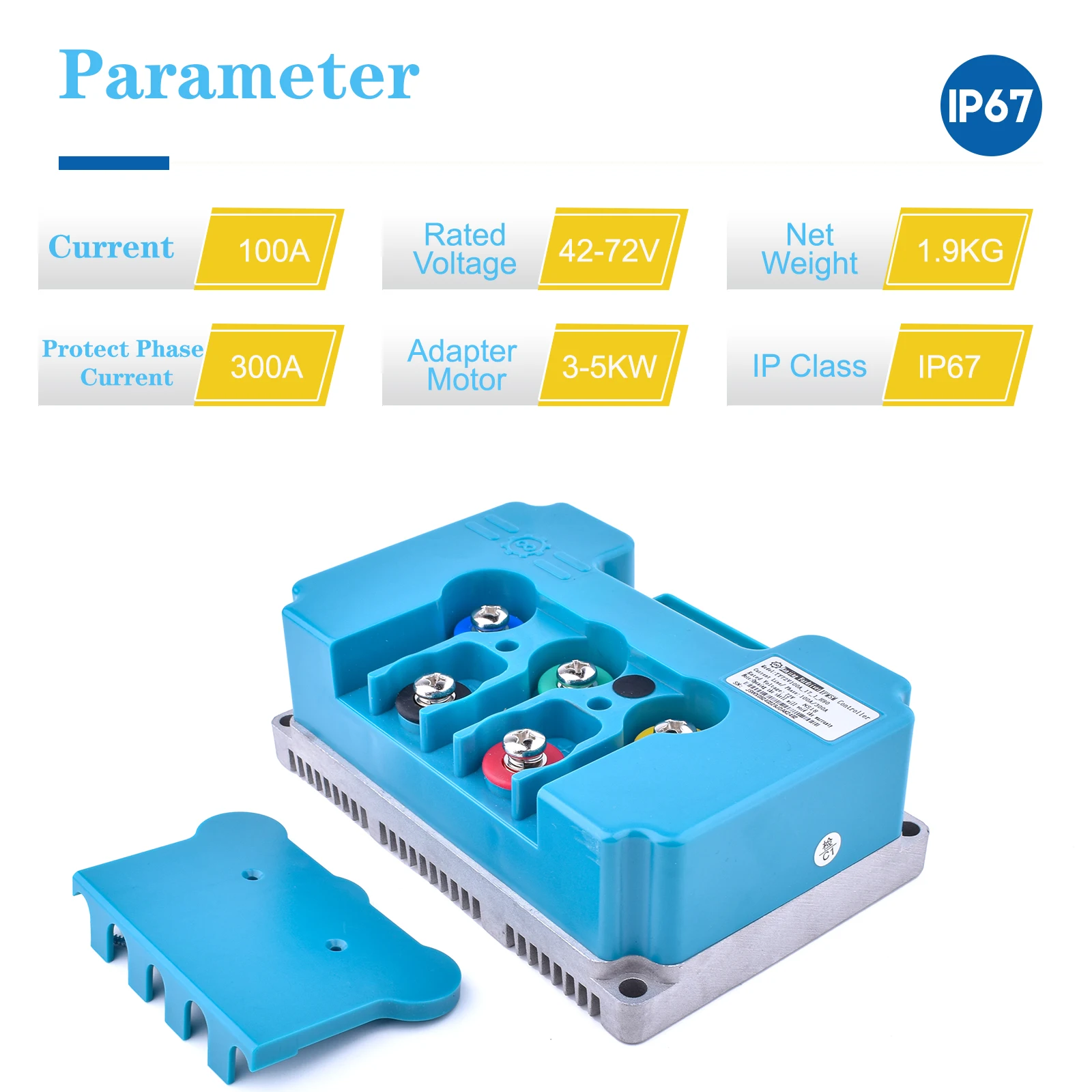

2.Fardriver Controller
3.Throttle

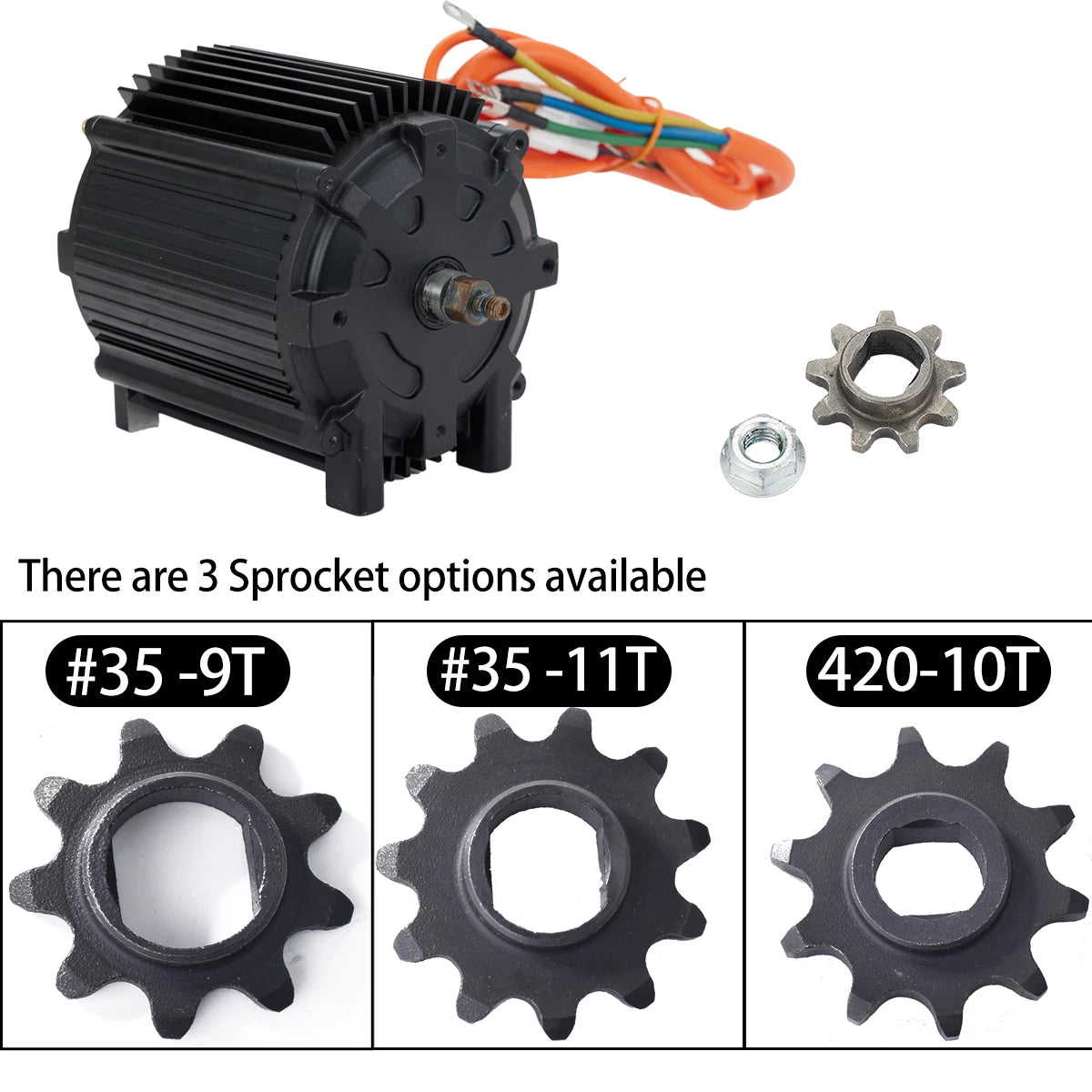

4.#35 chian 108link
5.65T Tooth
According to your Requirment
1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
